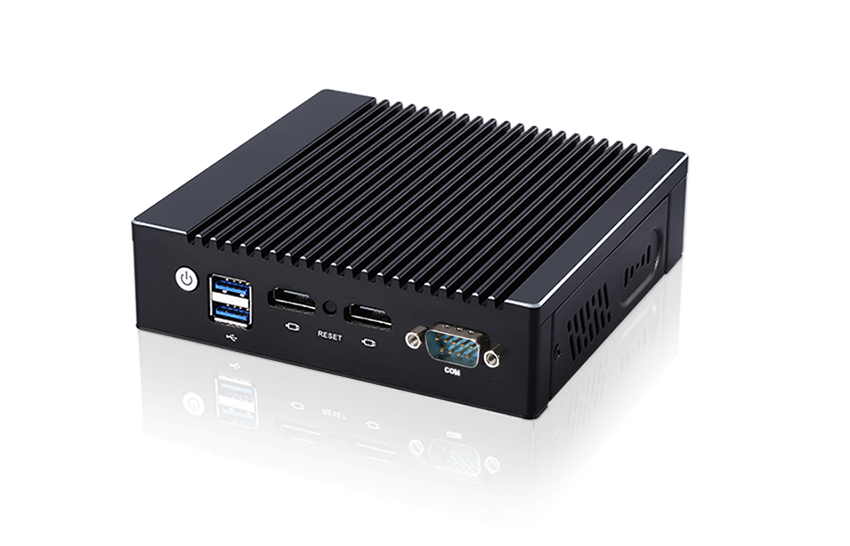

K8-F12B Pfsense Mini PC RS232
Model: K8-F12B
● Intel Pentium N3700 processor
● RAM up to 8GB, SSD up to 512GB
● Fanless and durable design
● 4x Intel LAN Ports
● 2HDMI Display ports
● RS232 COM port
● Support AES-NI
● Support WIFI, SIM card and 4G Module
● Support multiple Operating System
● support RPL / PXE diskless boot, wake on lan, WDT
Send InquiryK8-F12B adopt 4 Intel I225 Gigabit Ethernet ,allows you to secure your network with a compact, fanless & silent firewall,which is more powerful than common router. The OS support Windows,Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc
-
Part No.K8-F12B-3700
-
-
Processor
CPU
Intel Pentium N3700
Core Number
4 Cores/4 Threads
Frequency
1.6GHz
Max Turbo Frequency
2.4GHz
Chipset
Braswell
-
Memory
Technology
1*DDR3L slots
Max. Capacity
8GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Intel HD Graphics
-
Audio
HD Audio realtek ALC 662
-
Network
LAN
Intel I225 Gigabit Ethernet Controller
-
I/O Interface
Front
4*RJ45 Gigabit LAN,DC12V Input, Indicator light
Rear

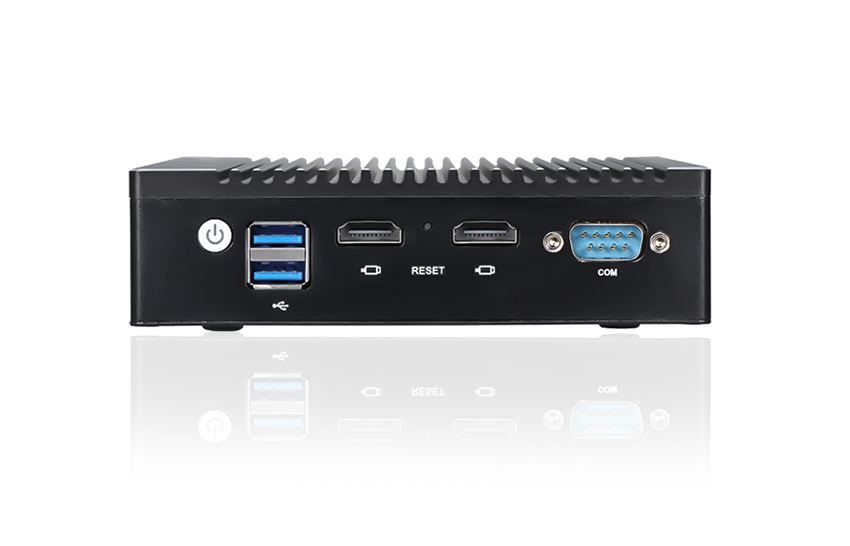

2*USB3.0, 2*HDMI,COM,Power ON/OFF, Reset
-
Extendable
Module
WIFI+Bluetooth Module (1 x M.2_PCIE)， SIM slot
Antenna
External antennas
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V - 3A
-
Operating System
Windows/Linux/Pfsense
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight
0.6kg
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk/ Wall Mount/Embedded
Certification
CE,FCC,ROHS,ISO,UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K8-F12B-3700
Intel Pentium N3700
-
Core Number
K8-F12B-3700
4 Cores/4 Threads
-
Frequency
K8-F12B-3700
1.6GHz
-
Max Turbo Frequency
K8-F12B-3700
2.4GHz
-
Chipset
K8-F12B-3700
Braswell
-
Technology
K8-F12B-3700
1*DDR3L slots
-
Max. Capacity
K8-F12B-3700
8GB
-
MSATA
K8-F12B-3700
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K8-F12B-3700
HDD 500GB/1TB/2TB (Optional )
-
K8-F12B-3700
Intel HD Graphics
-
K8-F12B-3700
HD Audio realtek ALC 662
-
LAN
K8-F12B-3700
Intel I225 Gigabit Ethernet Controller
-
Front
K8-F12B-3700
4*RJ45 Gigabit LAN,DC12V Input, Indicator light
-
Rear
K8-F12B-3700
2*USB3.0, 2*HDMI,COM,Power ON/OFF, Reset
-
Module
K8-F12B-3700
WIFI+Bluetooth Module (1 x M.2_PCIE)， SIM slot
-
Antenna
K8-F12B-3700
External antennas
-
Input
K8-F12B-3700
AC100-240V.50-60HZ DC
-
Output
K8-F12B-3700
12V - 3A
-
K8-F12B-3700
Windows/Linux/Pfsense
-
Dimension
K8-F12B-3700
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight
K8-F12B-3700
0.6kg
-
Color
K8-F12B-3700
Black
-
Cooling Method
K8-F12B-3700
Fanless Passive Cooling
-
Mounting Options
K8-F12B-3700
Desk/ Wall Mount/Embedded
-
Certification
K8-F12B-3700
CE,FCC,ROHS,ISO,UL
-
Operating Temperature
K8-F12B-3700
-10~60 ℃
-
Storage Temperature
K8-F12B-3700
-10~60 ℃
-
Operation Humidity
K8-F12B-3700
0~95% (No Condensation)
-
Storage Humidity
K8-F12B-3700
0~95% (No Condensation)
