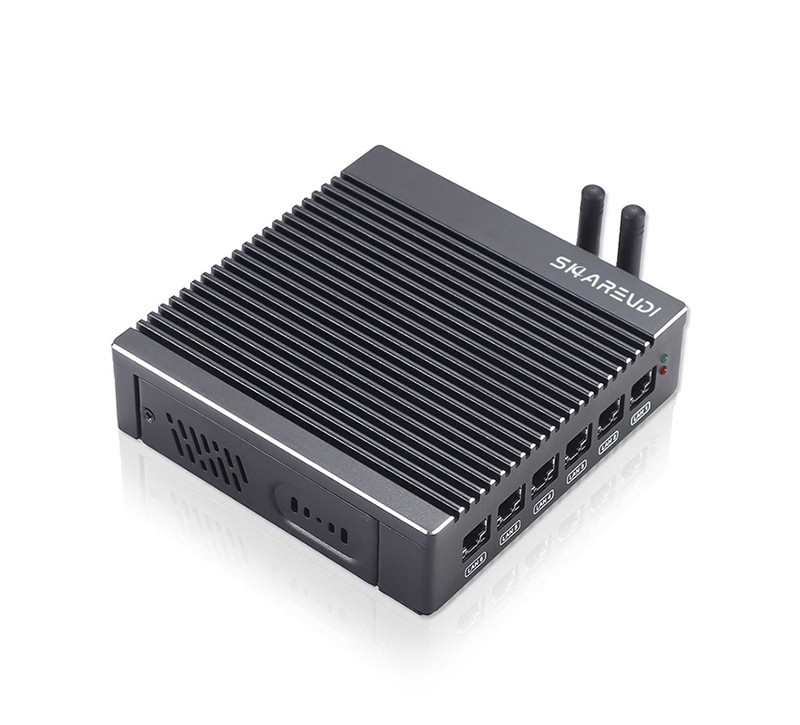

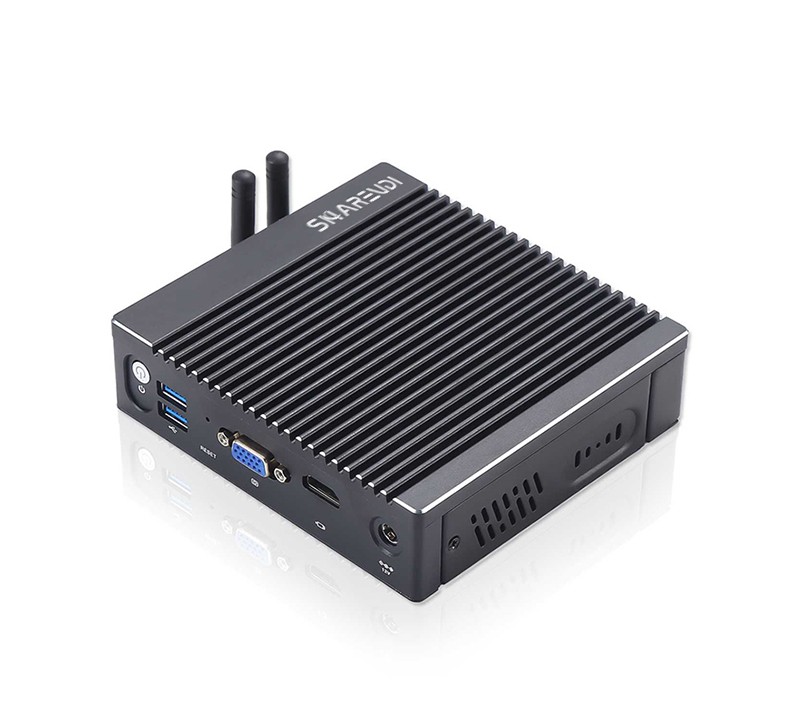

K8-F12C Firewall PC 6LAN
Model: K8-F12C
● Intel pentium N3700 processor
● RAM up to 8GB, SSD up to 512GB
● Fanless and durable design
● 6x Intel i225 LAN Ports
● 2x USB3.0
● Support AES-NI
● Support WIFI, SIM card and 4G Module
● Support multiple Operating System
● Support RPL / PXE diskless boot, wake on lan, WDT
Data Sheet 1
Send InquiryK8-F12C adopt 6 Intel I225 Gigabit Ethernet ,allows you to secure your network with a compact, fanless & silent firewall,which is more powerful than common router. The OS support Windows,Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc
-
Part No.K8-F12C-N3700
-
-
Processor
CPU
Intel Pentium N3700
Core Number
4 Cores / 4 Threads
Frequency
1.6GHz
Max Turbo Frequency
2.4GHz
Chipset
Braswell
-
Memory
Technology
1*SO-DIMM DDR3L slot
Max. Capacity
8GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Graphics
Intel HD Graphics
-
Audio
HD Audio realtek ALC 662
-
Network
LAN
Inte l225-V Gigabit Ethernet Controller
-
I/O Interface
Front

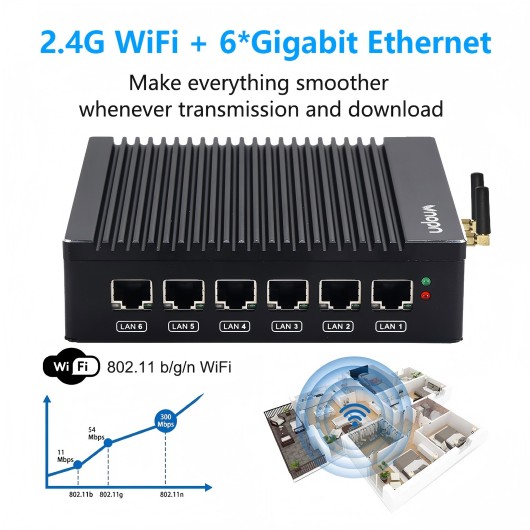

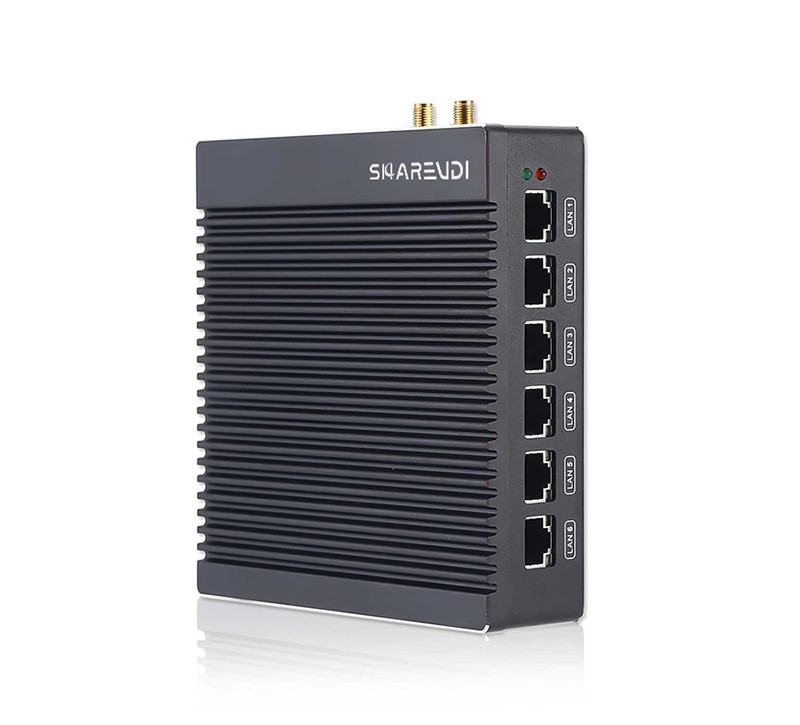

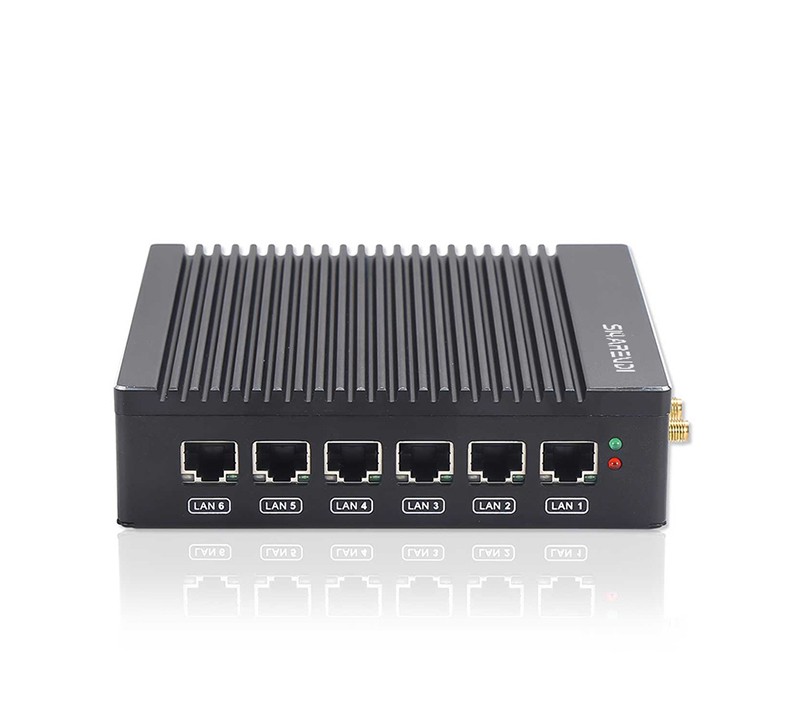

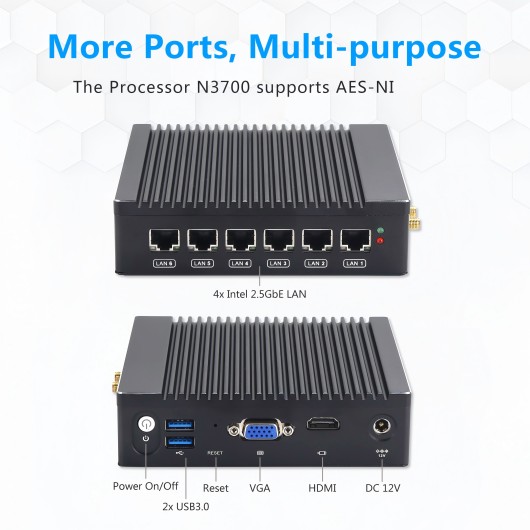

6*RJ45 Gigabit LAN, Indicator Light
Rear

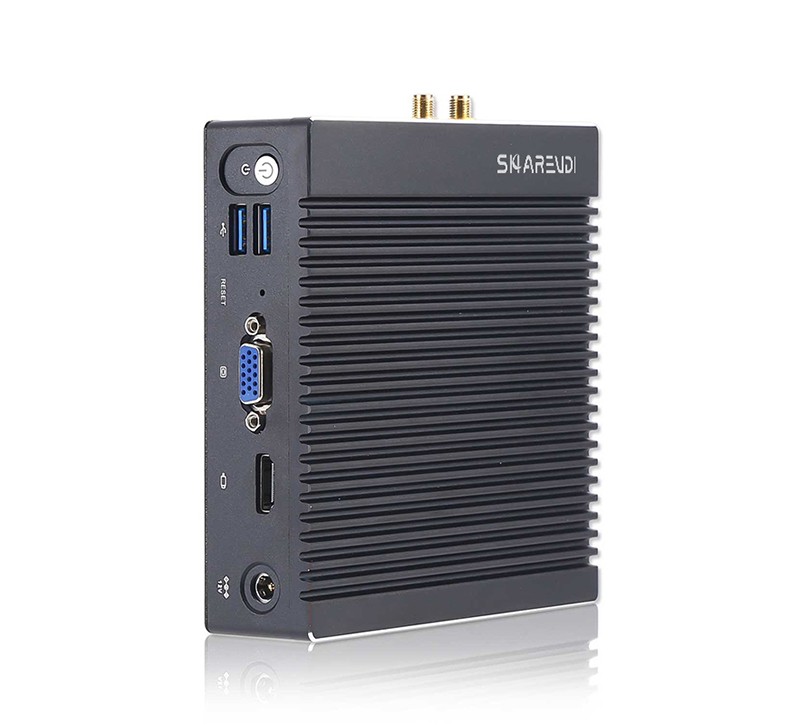

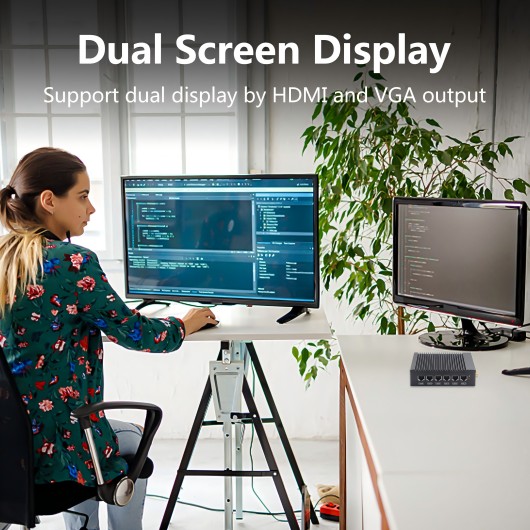

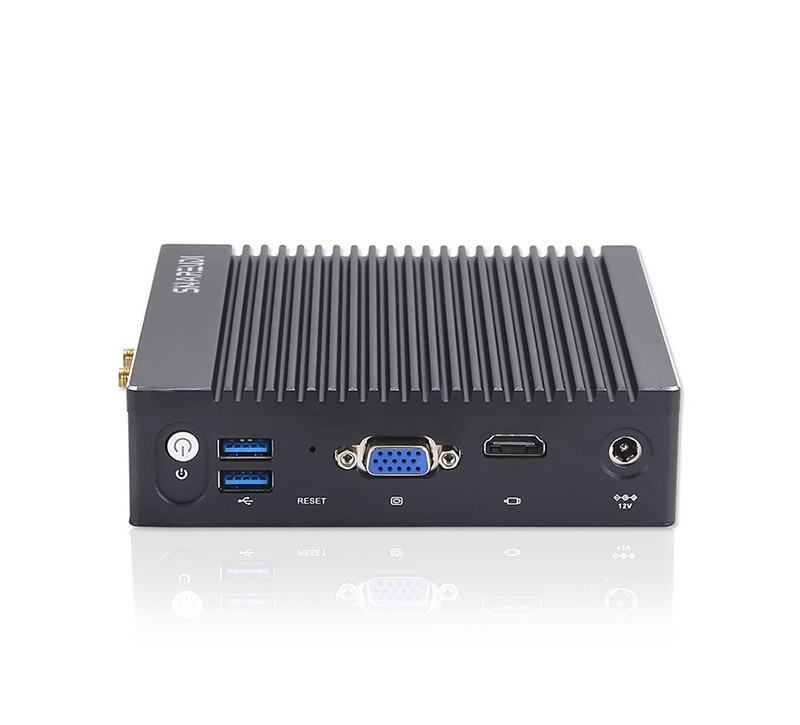

1*DC 12V, 1*HDMI, 1*VGA,1*Reset, 1*USB3.0, 1*Power ON/OFF
-
Extendable
Module
WIFI+Bluetooth Module (Mini PCIE)
Antenna
External antennas
-
Power
Input
AC100-240V.50-60HZ
Output
12V - 3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.6kg
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Vertical Stand/ Wall Mount/Embedded
Certification
CE,FCC,ROHS,ISO,UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K8-F12C-N3700
Intel Pentium N3700
-
Core Number
K8-F12C-N3700
4 Cores / 4 Threads
-
Frequency
K8-F12C-N3700
1.6GHz
-
Max Turbo Frequency
K8-F12C-N3700
2.4GHz
-
Chipset
K8-F12C-N3700
Braswell
-
Technology
K8-F12C-N3700
1*SO-DIMM DDR3L slot
-
Max. Capacity
K8-F12C-N3700
8GB
-
MSATA
K8-F12C-N3700
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
K8-F12C-N3700
Intel HD Graphics
-
K8-F12C-N3700
HD Audio realtek ALC 662
-
LAN
K8-F12C-N3700
Inte l225-V Gigabit Ethernet Controller
-
Front
K8-F12C-N3700
6*RJ45 Gigabit LAN, Indicator Light
-
Rear
K8-F12C-N3700
1*DC 12V, 1*HDMI, 1*VGA,1*Reset, 1*USB3.0, 1*Power ON/OFF
-
Module
K8-F12C-N3700
WIFI+Bluetooth Module (Mini PCIE)
-
Antenna
K8-F12C-N3700
External antennas
-
Input
K8-F12C-N3700
AC100-240V.50-60HZ
-
Output
K8-F12C-N3700
12V - 3A
-
K8-F12C-N3700
Windows/Linux
-
Dimension
K8-F12C-N3700
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight(Net)
K8-F12C-N3700
0.6kg
-
Color
K8-F12C-N3700
Black
-
Cooling Method
K8-F12C-N3700
Fanless Passive Cooling
-
Mounting Options
K8-F12C-N3700
Vertical Stand/ Wall Mount/Embedded
-
Certification
K8-F12C-N3700
CE,FCC,ROHS,ISO,UL
-
Operating Temperature
K8-F12C-N3700
-10~60 ℃
-
Storage Temperature
K8-F12C-N3700
-10~60 ℃
-
Operation Humidity
K8-F12C-N3700
0~95% (No Condensation)
-
Storage Humidity
K8-F12C-N3700
0~95% (No Condensation)
