K5-F17H Intel Industrial PC
Model: K5-F17H-10210U
● Intel core i5-10th generation processor
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible I/O port expansion
● 4 x Serial ports
● Supports triple screen simultaneous display (2 x HDMI + 1 x DP)
● 6 x USB ports
● Support 4G LTE module
● Optional TPM 2.0 support
● 12V ~ 64V wide range power input
● Wide temperature -20~65°C

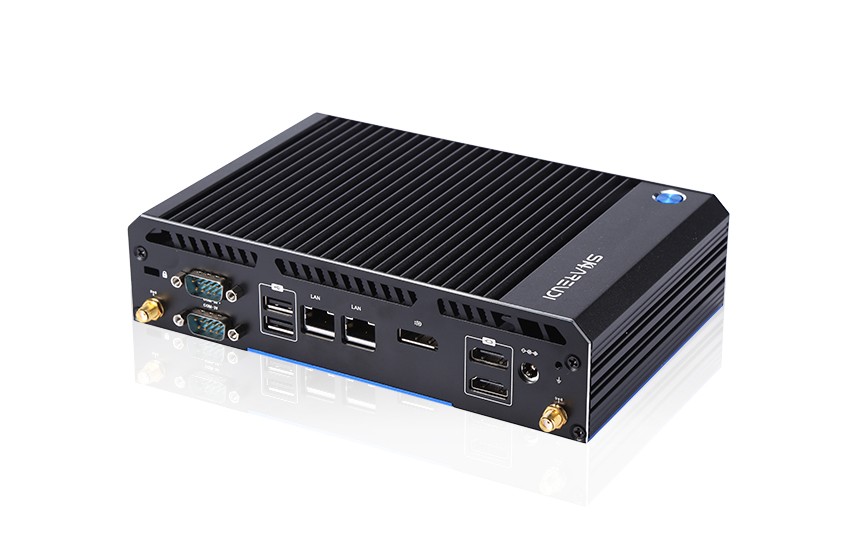

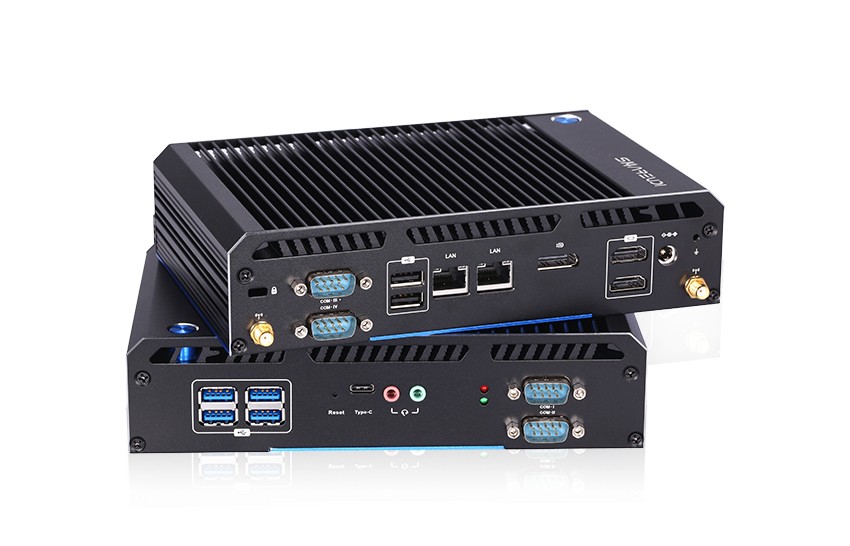

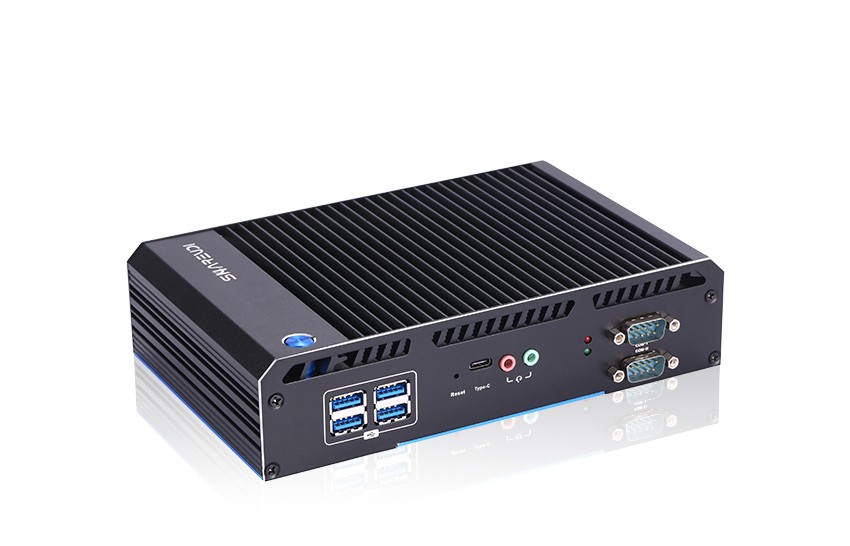

The K5-F17H is a fanless embedded PC, driven by the Intel Core i5 10th Generation processor. The PC body adopt industrial grade components for the design of 7/24 working in extreme conditions, operating temperature from -20 to 65 °C. This PC is not only compact in size but also dustproof and shockproof, while possessing strong computing capabilities. These features make it highly suitable for a wide range of applications in various harsh environments.
-
Part No.K3-F17H-10110UK5-F17H-10210U
-
-
Processor
CPU
Intel Core i3-10110U, 2 Cores / 4 Threads
Intel Core i5-10210U, 4 Cores / 8 Threads
Frequency
2.1GHz
1.6GHz
Max Turbo Frequency
4.1GHz
4.2 GHz
Cache
4 MB Cache
6 MB Cache
Chipset
Products formerly Broadwell
Products formerly Comet Lake
-
Memory
Technology
2*DDR4L slots
2*DDR4L slots
Max. Capacity
32GB
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel® UHD Graphics for 10th Gen Intel® Processors
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Audio
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
Support 4G module with available sim slot
Support 4G module with available sim slot
-
I/O Interface
Front

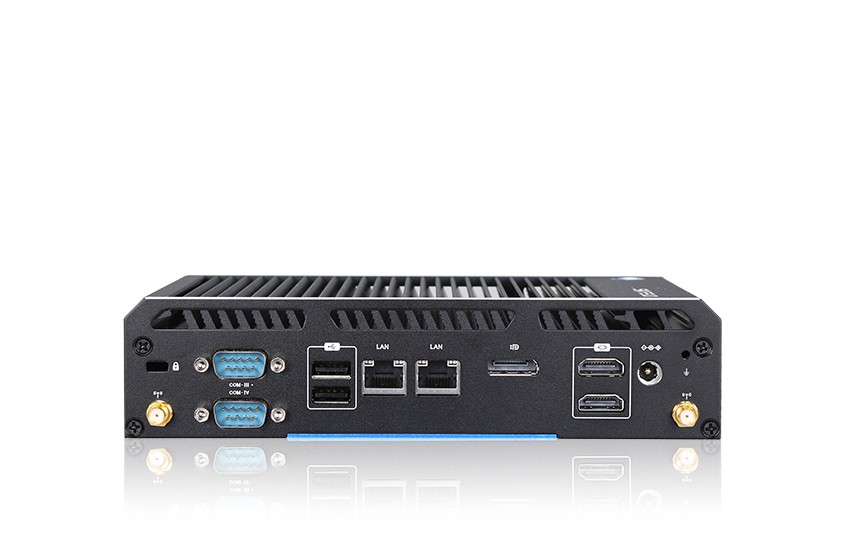

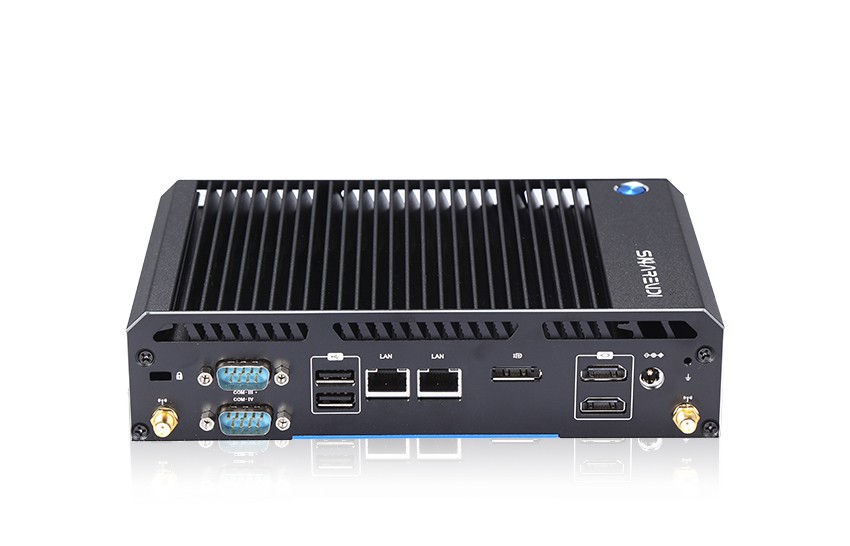

2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
Rear

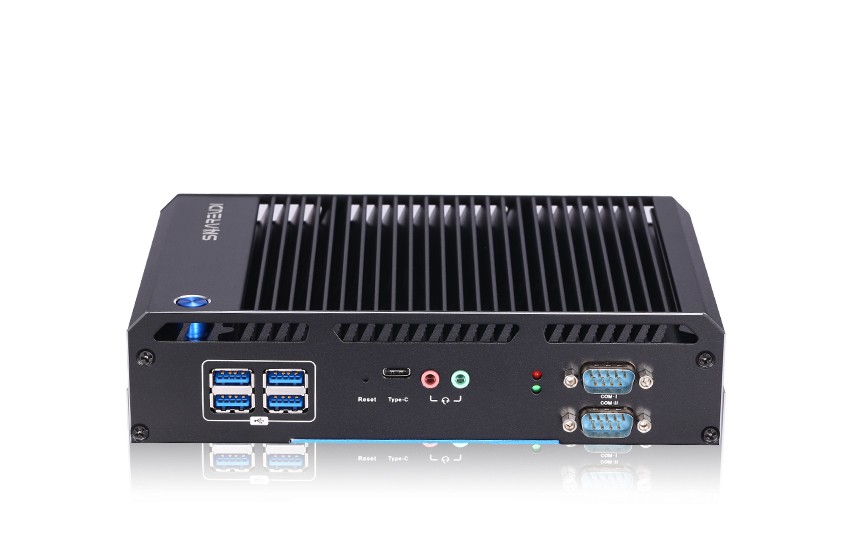

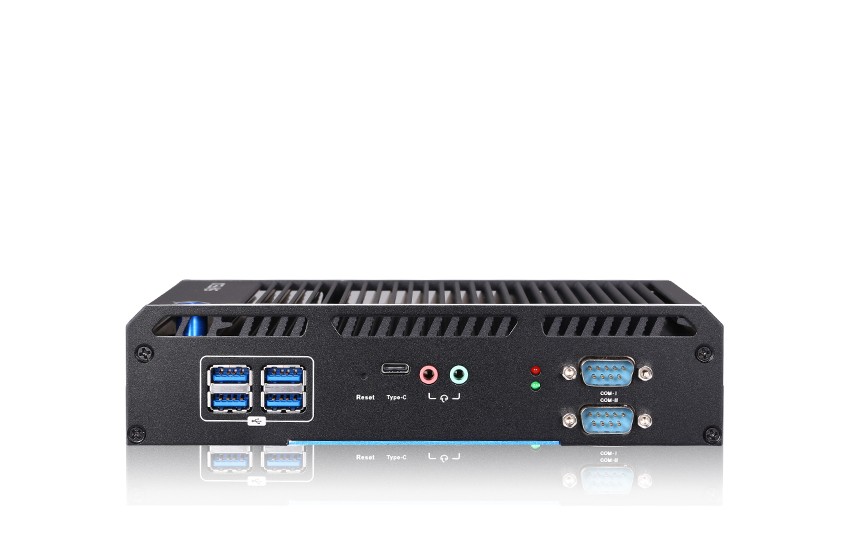

4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-5A
12V-5A
Wide Voltage
12-64V phoenix connector(Optional)
12-64V phoenix connector(Optional)
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
CPU
K3-F17H-10110U
Intel Core i3-10110U, 2 Cores / 4 Threads
K5-F17H-10210U
Intel Core i5-10210U, 4 Cores / 8 Threads
-
Frequency
K3-F17H-10110U
2.1GHz
K5-F17H-10210U
1.6GHz
-
Max Turbo Frequency
K3-F17H-10110U
4.1GHz
K5-F17H-10210U
4.2 GHz
-
Cache
K3-F17H-10110U
4 MB Cache
K5-F17H-10210U
6 MB Cache
-
Chipset
K3-F17H-10110U
Products formerly Broadwell
K5-F17H-10210U
Products formerly Comet Lake
-
Technology
K3-F17H-10110U
2*DDR4L slots
K5-F17H-10210U
2*DDR4L slots
-
Max. Capacity
K3-F17H-10110U
32GB
K5-F17H-10210U
32GB
-
M.2 SATA
K3-F17H-10110U
SSD 64GB/128GB/256GB/512GB/1TB
K5-F17H-10210U
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K3-F17H-10110U
HDD 500GB/1TB/2TB (Optional)
K5-F17H-10210U
HDD 500GB/1TB/2TB (Optional)
-
Graphics
K3-F17H-10110U
Intel® UHD Graphics for 10th Gen Intel® Processors
K5-F17H-10210U
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Audio
K3-F17H-10110U
HD Audio realtek ALC 662
K5-F17H-10210U
HD Audio realtek ALC 662
-
LAN
K3-F17H-10110U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
K5-F17H-10210U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
-
Wireless
K3-F17H-10110U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K5-F17H-10210U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G module
K3-F17H-10110U
Support 4G module with available sim slot
K5-F17H-10210U
Support 4G module with available sim slot
-
Front
K3-F17H-10110U
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
K5-F17H-10210U
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
-
Rear
K3-F17H-10110U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K5-F17H-10210U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
I/O
K3-F17H-10110U
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
K5-F17H-10210U
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
-
Module
K3-F17H-10110U
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
K5-F17H-10210U
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K3-F17H-10110U
AC100-240V. 50-60Hz DC
K5-F17H-10210U
AC100-240V. 50-60Hz DC
-
Output
K3-F17H-10110U
12V-5A
K5-F17H-10210U
12V-5A
-
Wide Voltage
K3-F17H-10110U
12-64V phoenix connector(Optional)
K5-F17H-10210U
12-64V phoenix connector(Optional)
-
K3-F17H-10110U
Windows/Linux
K5-F17H-10210U
Windows/Linux
-
Dimension
K3-F17H-10110U
L 197.4mm*W 126.3mm*H 47.5mm
K5-F17H-10210U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K3-F17H-10110U
1.0KG
K5-F17H-10210U
1.0KG
-
Color
K3-F17H-10110U
Black
K5-F17H-10210U
Black
-
Cooling Method
K3-F17H-10110U
Fanless Passive Cooling
K5-F17H-10210U
Fanless Passive Cooling
-
Mounting Options
K3-F17H-10110U
Dedicated bracket; Support VESA bracket
K5-F17H-10210U
Dedicated bracket; Support VESA bracket
-
Certification
K3-F17H-10110U
CE, FCC, ROHS, ISO, UL
K5-F17H-10210U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K3-F17H-10110U
-10~60 ℃
K5-F17H-10210U
-10~60 ℃
-
Storage Temperature
K3-F17H-10110U
-10~60 ℃
K5-F17H-10210U
-10~60 ℃
-
Operation Humidity
K3-F17H-10110U
0~95% (No Condensation)
K5-F17H-10210U
0~95% (No Condensation)
-
Storage Humidity
K3-F17H-10110U
0~95% (No Condensation)
K5-F17H-10210U
0~95% (No Condensation)
