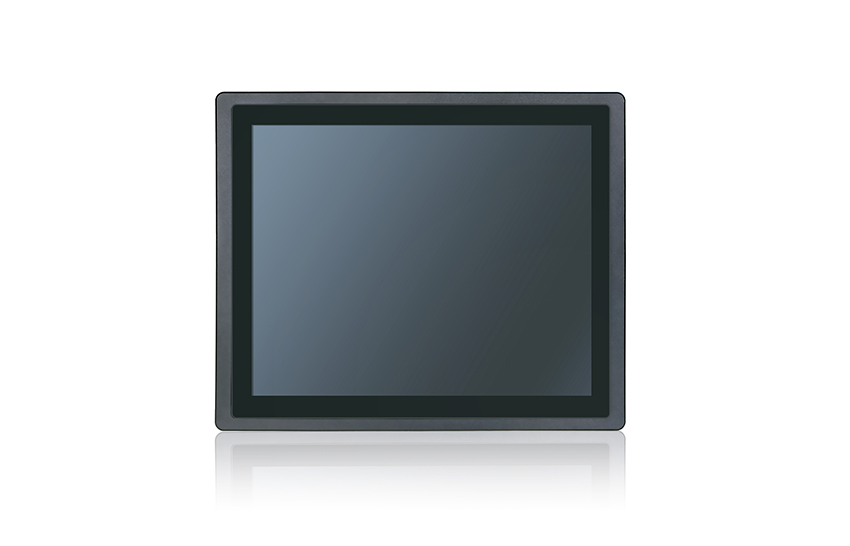

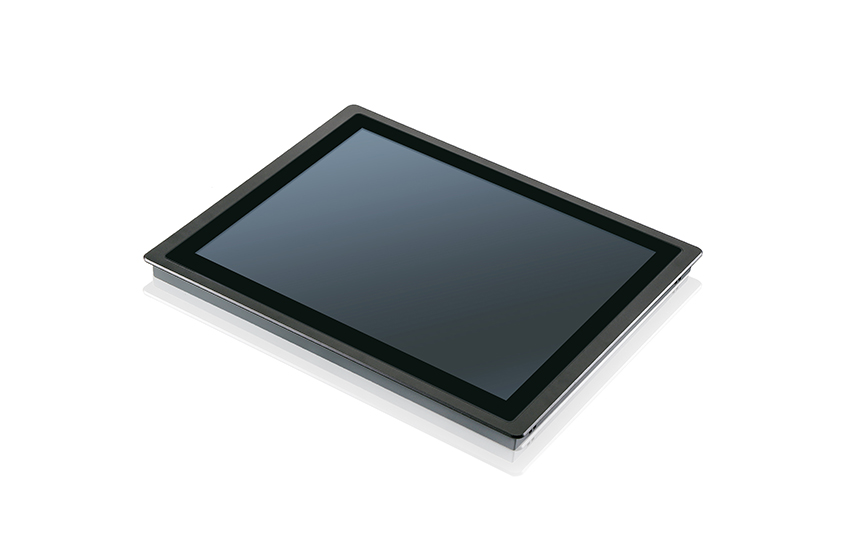

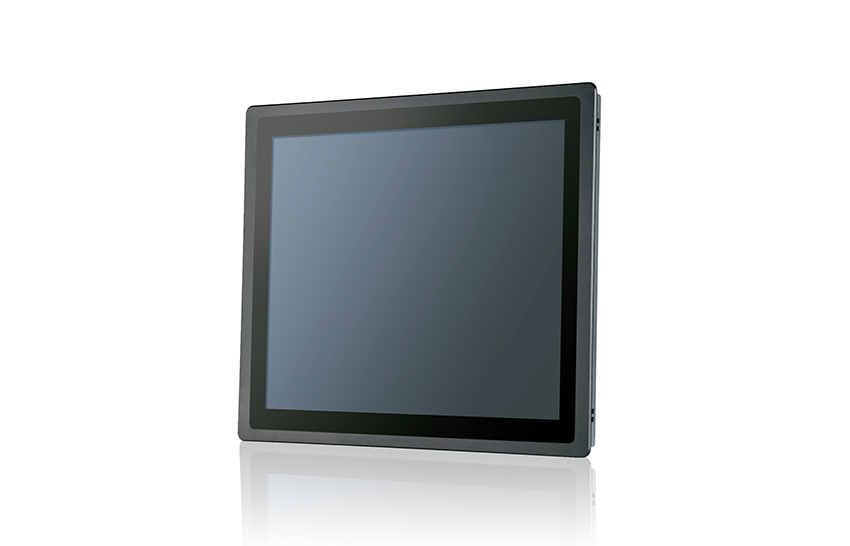

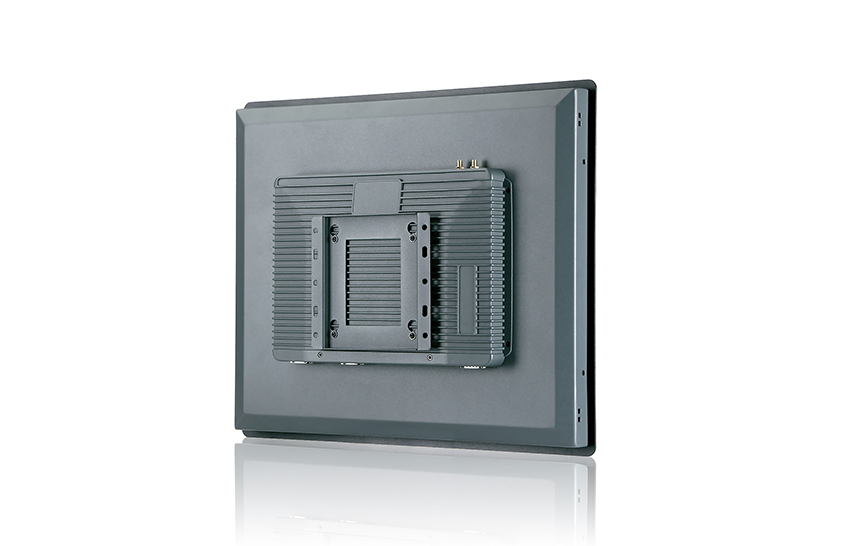

A19 Industrial touch Panel PC
Model: A15
● Flat 19'' capacitive/resistive 10-point touch screen, IP65-rated front panel
● With 1/2 x COM port (RS232 / RS485)
● With 1/2 x LAN port
● Support wide voltage 12- 64V power supply
● Support 4G LTE module,mini PCIE / M.2 expansion

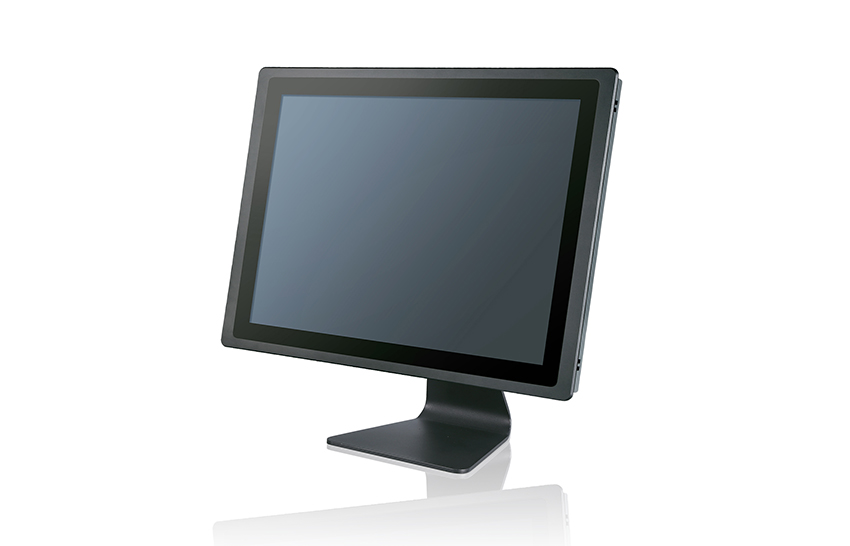

● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
The Industrial touch panel pc is a 19-inch device with an IP65 rating, ensuring excellent protection against dust and water. It offers the flexibility of supporting both capacitive and resistive touch technologies. Powered by a high-performance I7 7500U CPU, it can handle complex industrial tasks with ease. The wide voltage support ranging from 9 to 36V makes it suitable for various power supply conditions. Its robust design and powerful computing capabilities make it an ideal choice for industrial automation,self service KIOSK, smart locker, factory and other industrial applications where reliability and performance are crucial. It provides a seamless user experience and stable operation even in harsh industrial environments.
-
Part No.A19-i5 1145G7A19-i7 7500U
-
-
Processor System
CPU
Intel Core I5 1145G7
Intel Core I7-7500U
RAM
DDR4 4GB/8GB/16GB
DDR4 4GB/8GB/16GB
Storage
SSD 64GB/128GB/256GB/512GB
SSD 64GB/128GB/256GB/512GB
-
Display
Panel Size
19''
19''
Max. Resolution
1024*768p
1024*768p
Max. Colors
16.7M
16.7M
Treatment
Anti-Glare
Anti-Glare
Brightness
250-500nits
250-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
4:3
4:3
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Gray
Gray
-

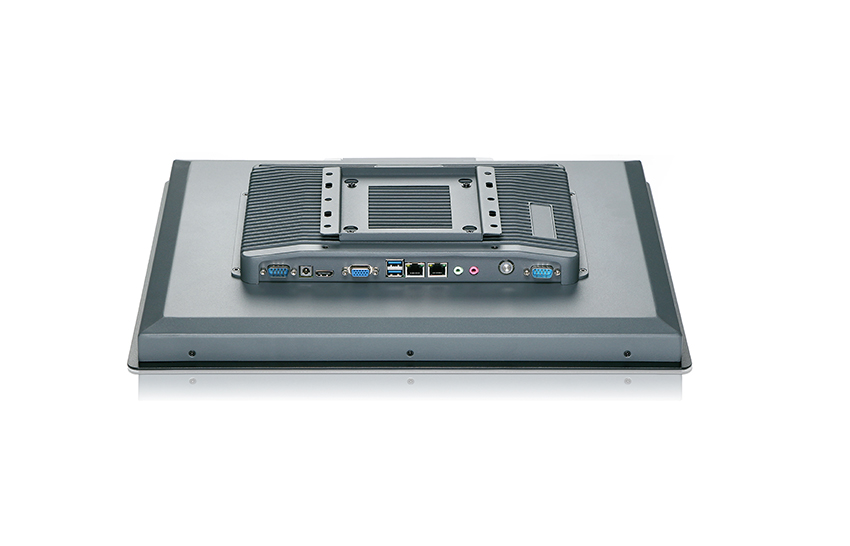

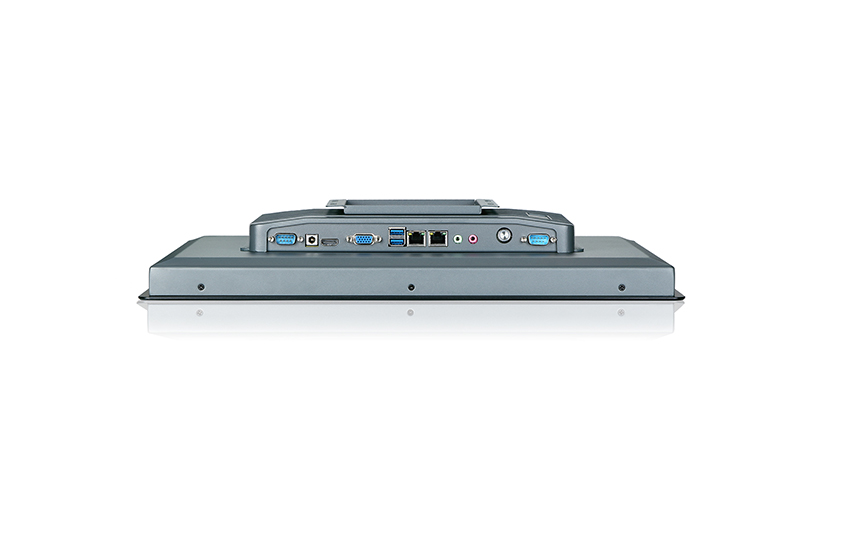

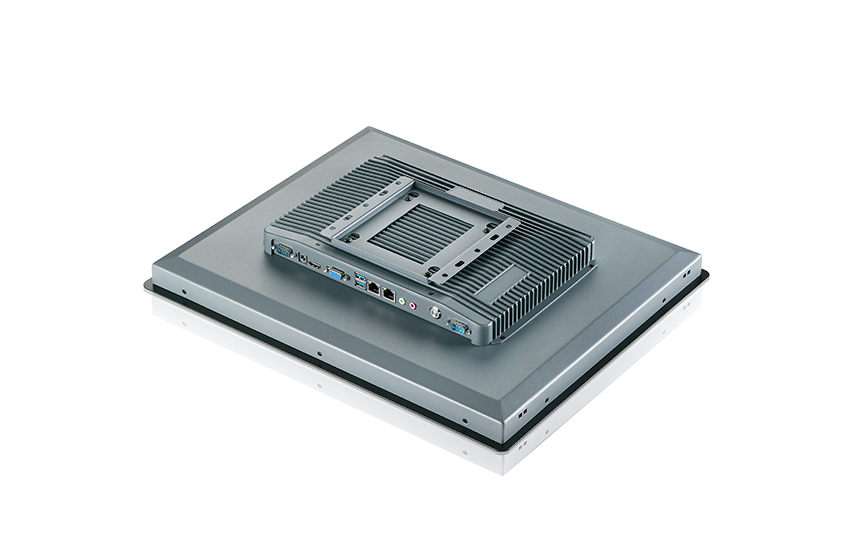

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1~2*RS232/RS485 (Upgradable)
1~2*RS232/RS485 (Upgradable)
USB Port
2*USB(Upgradable)
6*USB (Upgradable)
Ethernet
2*RJ45(Upgradable)
2*RJ45 (Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
453*375.5*64.8 mm
453*375.5*64.8 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 7A
DC12V 7A

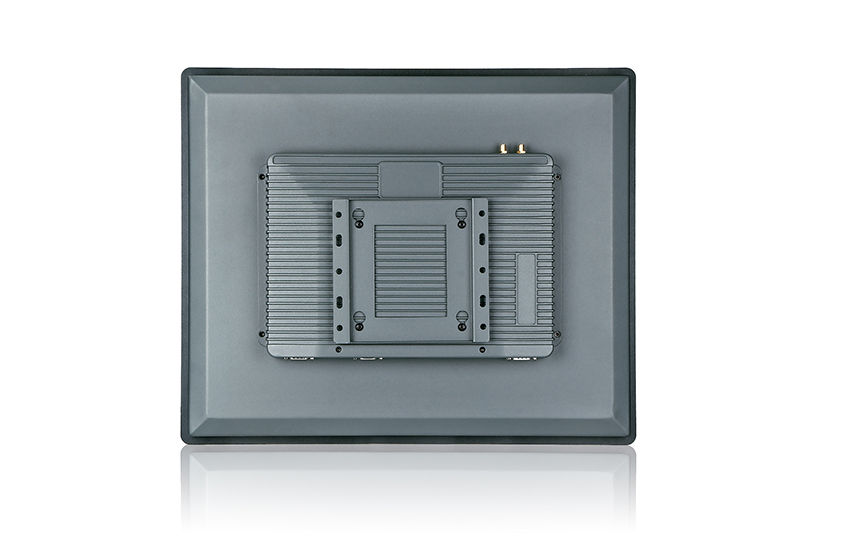

Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
7.5KG
7.5KG
-
Environment
Operating Temperature
-20 ~ 70℃
-20 ~ 70℃
Storage Temperature
-10 ~ 60℃
-10 ~ 60℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A19-i5 1145G7
Intel Core I5 1145G7
A19-i7 7500U
Intel Core I7-7500U
-
RAM
A19-i5 1145G7
DDR4 4GB/8GB/16GB
A19-i7 7500U
DDR4 4GB/8GB/16GB
-
Storage
A19-i5 1145G7
SSD 64GB/128GB/256GB/512GB
A19-i7 7500U
SSD 64GB/128GB/256GB/512GB
-
Panel Size
A19-i5 1145G7
19''
A19-i7 7500U
19''
-
Max. Resolution
A19-i5 1145G7
1024*768p
A19-i7 7500U
1024*768p
-
Max. Colors
A19-i5 1145G7
16.7M
A19-i7 7500U
16.7M
-
Treatment
A19-i5 1145G7
Anti-Glare
A19-i7 7500U
Anti-Glare
-
Brightness
A19-i5 1145G7
250-500nits
A19-i7 7500U
250-500nits
-
Viewing Direction
A19-i5 1145G7
Full Viewing
A19-i7 7500U
Full Viewing
-
Aspect Ratio
A19-i5 1145G7
4:3
A19-i7 7500U
4:3
-
Touch Points
A19-i5 1145G7
10 Points
A19-i7 7500U
10 Points
-
Type
A19-i5 1145G7
Capacitive Touch
A19-i7 7500U
Capacitive Touch
-
A19-i5 1145G7
Gray
A19-i7 7500U
Gray
-
Video output
A19-i5 1145G7
1*VGA,1*HDMI
A19-i7 7500U
1*VGA,1*HDMI
-
Serial Port
A19-i5 1145G7
1~2*RS232/RS485 (Upgradable)
A19-i7 7500U
1~2*RS232/RS485 (Upgradable)
-
USB Port
A19-i5 1145G7
2*USB(Upgradable)
A19-i7 7500U
6*USB (Upgradable)
-
Ethernet
A19-i5 1145G7
2*RJ45(Upgradable)
A19-i7 7500U
2*RJ45 (Upgradable)
-
Extendable Port
A19-i5 1145G7
RS485, LPT, Phoenix terminal(Replace DC)
A19-i7 7500U
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A19-i5 1145G7
CE,FCC,ROHS,ISO
A19-i7 7500U
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A19-i5 1145G7
453*375.5*64.8 mm
A19-i7 7500U
453*375.5*64.8 mm
-
Power Input
A19-i5 1145G7
AC100-240V.50-60HZ
A19-i7 7500U
AC100-240V.50-60HZ
-
Power Output
A19-i5 1145G7
DC12V 7A
A19-i7 7500U
DC12V 7A
-
Mounting Options
A19-i5 1145G7
Wall Mount/Embedded Vesa Mount/Vertical Stand
A19-i7 7500U
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A19-i5 1145G7
7.5KG
A19-i7 7500U
7.5KG
-
Operating Temperature
A19-i5 1145G7
-20 ~ 70℃
A19-i7 7500U
-20 ~ 70℃
-
Storage Temperature
A19-i5 1145G7
-10 ~ 60℃
A19-i7 7500U
-10 ~ 60℃
-
Operation Humidity
A19-i5 1145G7
10% ~ 80%
A19-i7 7500U
10% ~ 80%
-
Storage Humidity
A19-i5 1145G7
10% ~ 90%
A19-i7 7500U
10% ~ 90%
