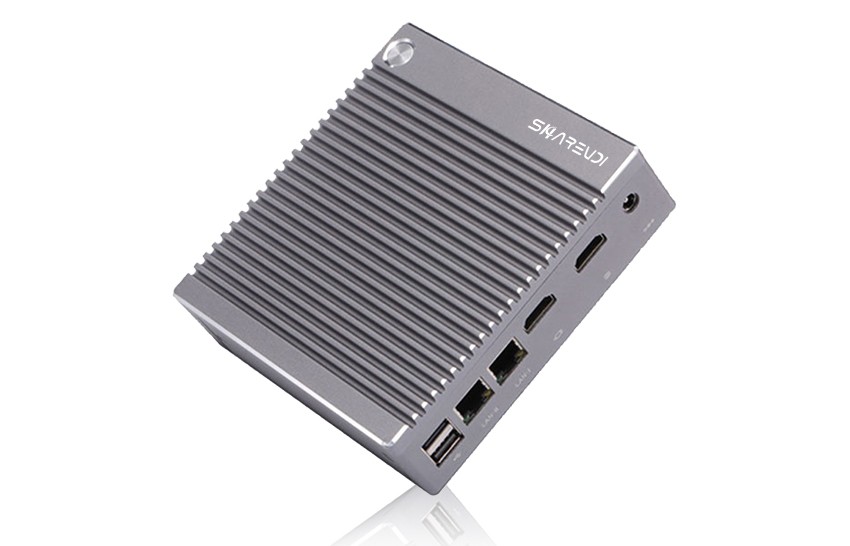

K6-F13A Mini PC 2 LAN
Model: K6-F13A-N2940
● Fanless and compact design
● Ultra low power consumption, TDP 7.5W
● Dual HDMI ports
● Dual LAN ports
● 6 USB ports (4xUSB3.0, 2xUSB2.0)

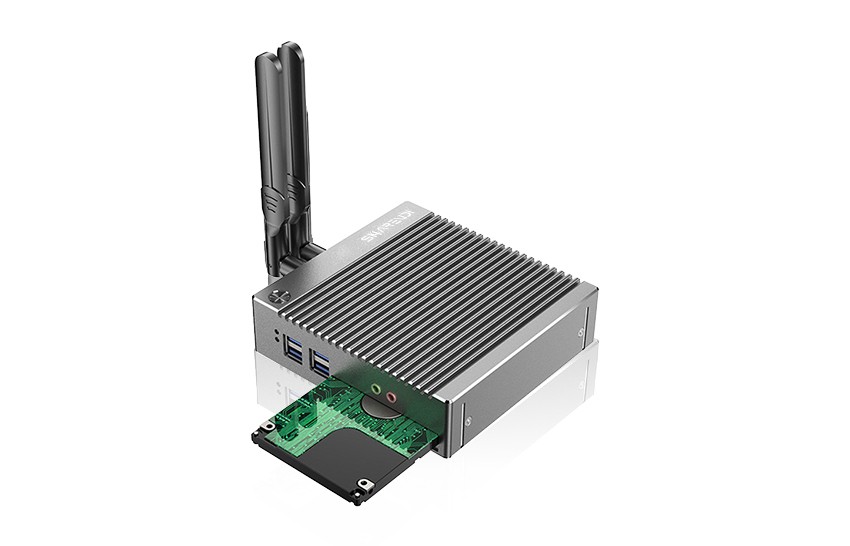

● External SATA 3.0 slot (2.5'')
● DDR3L Max 8GB RAM, Mini SATA SSD up to 512GB
● Support RPL / PXE, wake on lan, electricity boot, WDT
Data Sheet 1
Send InquiryThe K6-F13A is a compact, fanless Mini PC equipped with 2 HDMI ports and 2 Ethernet ports. This product has been widely utilized in various applications such as dual-display Digital signage, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS, Retail, Networking, Automation, Surveillance, Parking Pay Station, Channel System, and Medical electronics, among others.
-
Part No.K6-F13A-N2840K6-F13A-N2940
-
-
Processor
CPU
Intel Celeron N2840，2 Cores / 2 Threads
Intel Celeron N2940, 4 Cores / 4 Threads
Frequency
2.16GHz
1.83GHz
Max Turbo Frequency
2.16GHz
2.25GHz
Cache
2MB L2 Cache
2MB L2 Cache
Chipset
Bay Trail
Bay Trail
-
Memory
Technology
1*DDR3L slot
1*DDR3L slot
Max. Capacity
8GB
8GB
-
Storage
MSATA
SSD 32GB/64GB/128GB/256GB/512GB
SSD 32GB/64GB/128GB/256GB/512GB
SATA
Optional HDD
Optional HDD
-
Graphics
Intel HD Graphics
Intel HD Graphics for Intel Atom Processor Z3700 Series
-
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
10/100/1000Mbps Adaptive, RTL 8111F
10/100/1000Mbps Adaptive, RTL 8111F
-
I/O Interface
Front

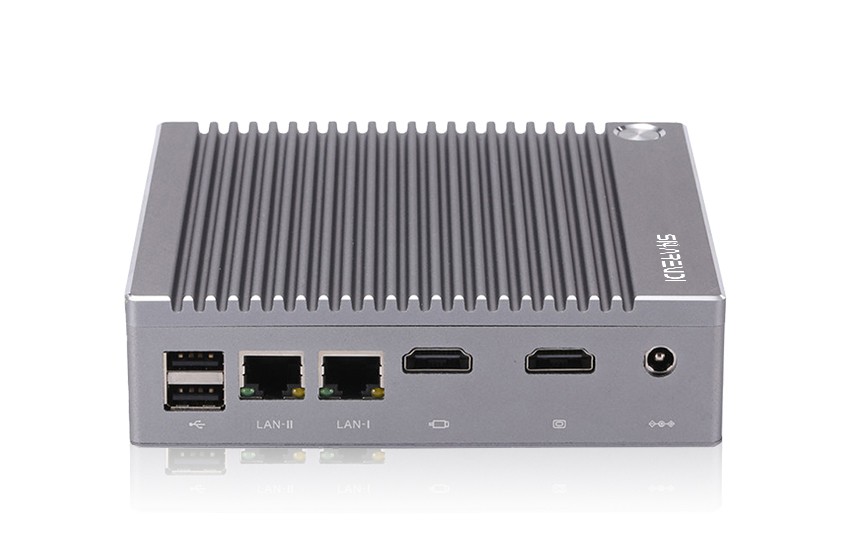

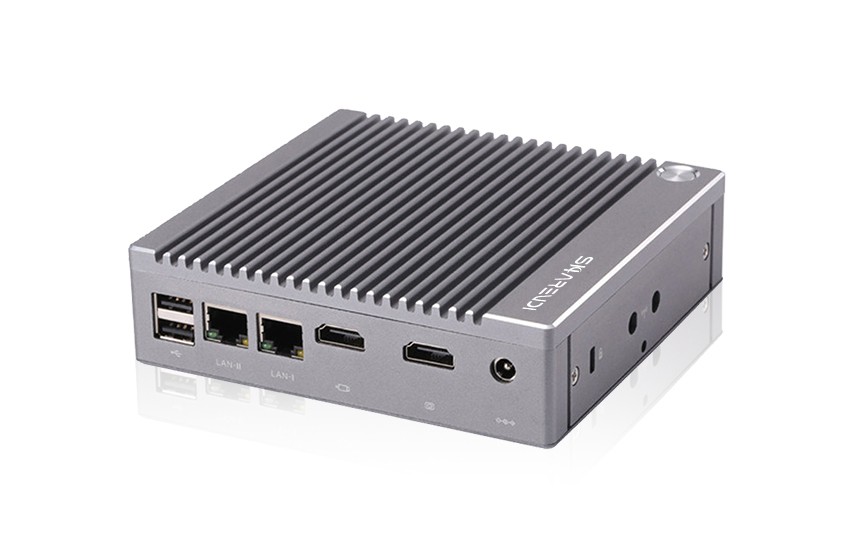

2*HDMI, 2*USB2.0, 2*RJ45, DC12V Input
2*HDMI, 2*USB2.0, 2*RJ45, DC12V Input
Rear

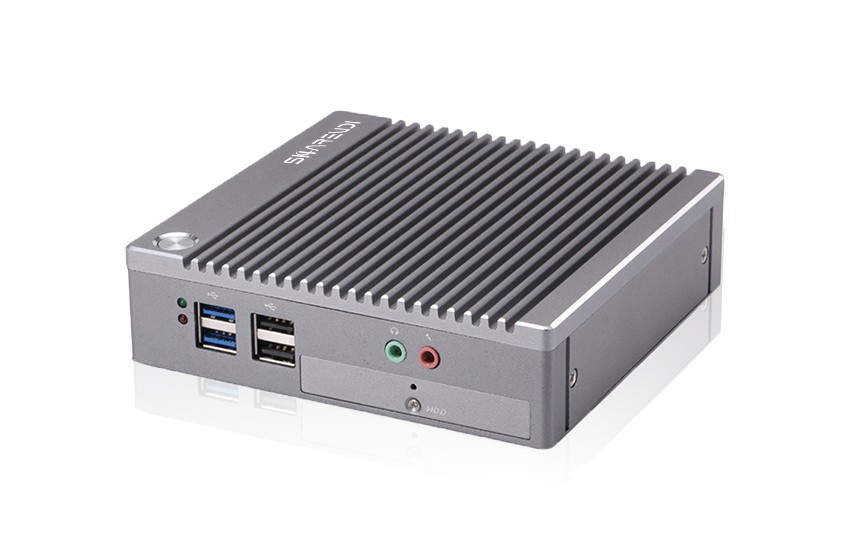

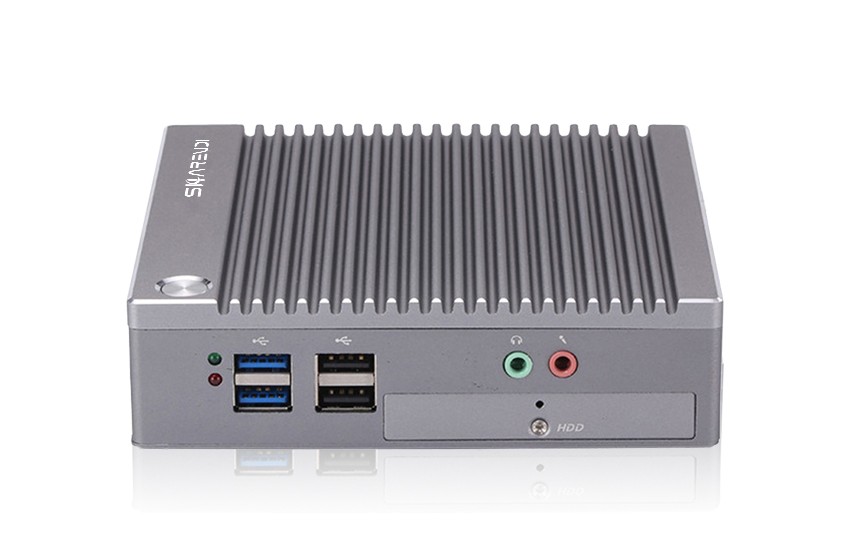

2*USB3.0, 2*USB2.0, MIC, SPK
2*USB3.0, 2*USB2.0, MIC, SPK
-
Extendable
I/O
1*FP、1*JP3、2~4*COM、1*GPIO
1*FP、1*JP3、2~4*COM、1*GPIO
Module
WIFI+Bluetooth Module (M.2 PCIE)
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-3A
12V-3A
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.65KG
0.65KG
Color
Silver
Silver
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Dedicated bracket; Support VESA bracket
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
