K6-F13G Intel NUC Fanless Mini PC
Model: K6-F13G-N2840
● Fanless and rugged design
● 1 RJ45 COM
● Support SIM and TF card
● VGA+HDMI port
● 6 USB port
● Extendable RAM, up to 8GB
● Extendable SSD, up to 512GB
● Windows10/Linux operating system
Data Sheet 1

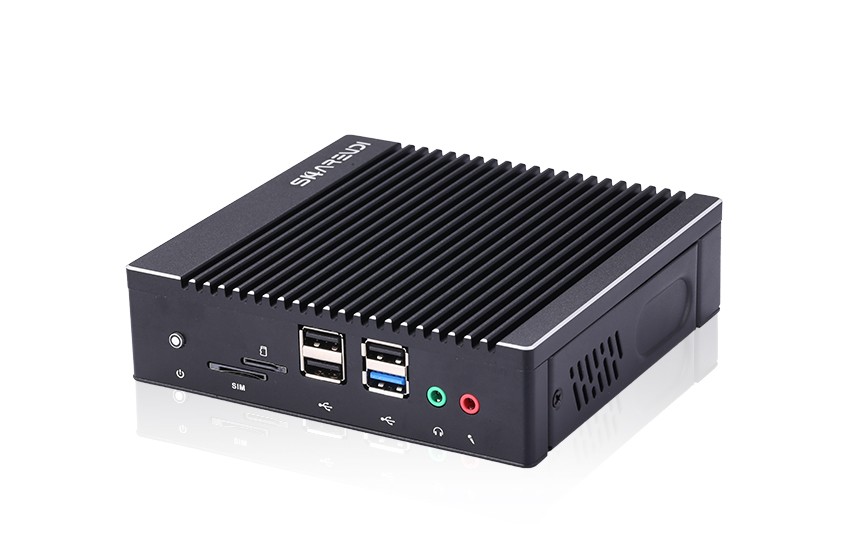

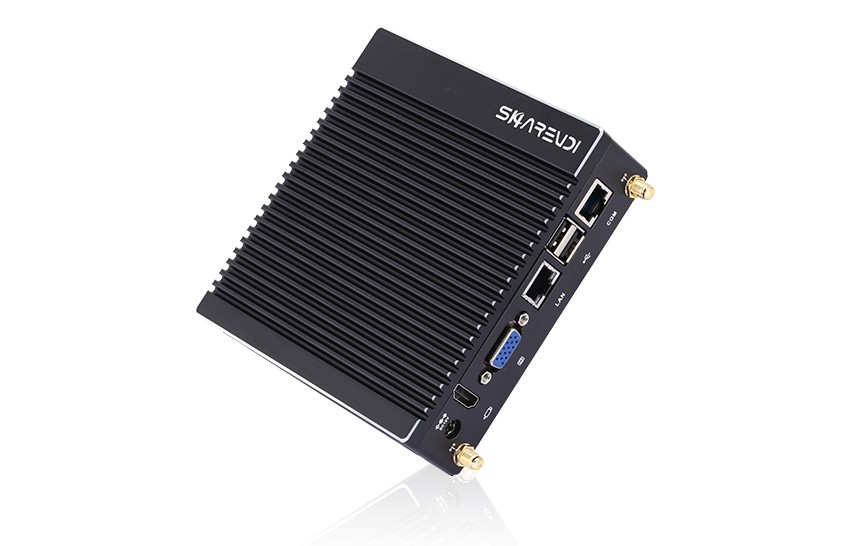

Send InquiryK6-F13G is a small designed and fanless PC powered by Intel celeron processor. It comes with 1 COM port and 1 LAN port, with SIM and TF card slots, 6USB port, VGA and HDMI display port. It works as a POS PC as well as small server with Windows 10 or Linux OS installed. The rugged and full aluminum housing makes it good for some wide range applications, such as factory, warehouse, supermarket, restaurant, bank, school etc.
-
Part No.K6-F13G-N2840
-
-
Processor
CPU
Intel Celeron N2840，2 Cores / 2 Threads
Frequency
2.16GHz
Max Turbo Frequency
2.16GHz
Cache
1MB L2 Cache
Chipset
Bay Trail
-
Memory
Technology
1*DDR3L slot
Max. Capacity
8GB
-
Storage
MSATA
SSD 32GB/64GB/128GB/256GB/512GB
SATA
Optional HDD
-
Graphics
Intel HD Graphics
-
Audio
HD Audio realtek ALC 662
-
Network
10/100/1000Mbps Adaptive, RTL 8111F
-
I/O Interface
Front

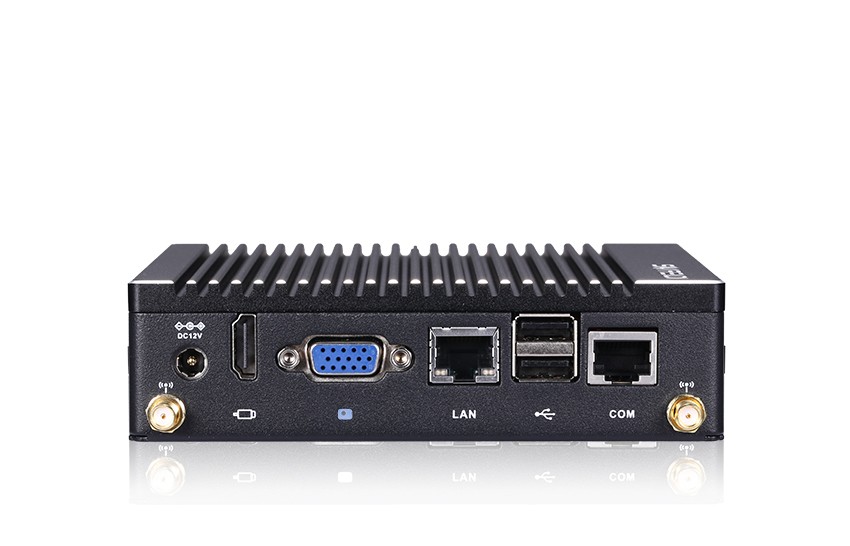

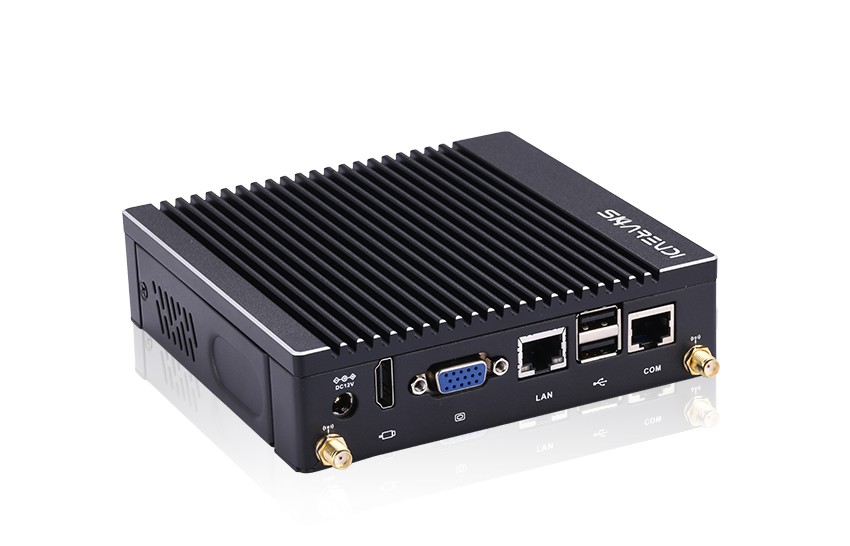

1*HDMI, 1*VGA, 1*RJ45, 2*USB 2.0, 1*RJ45 COM, DC12V,
Rear

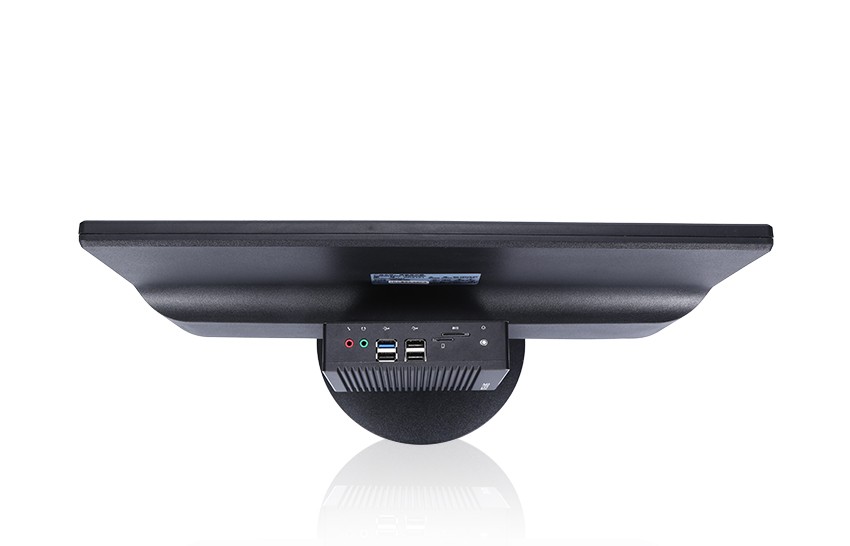

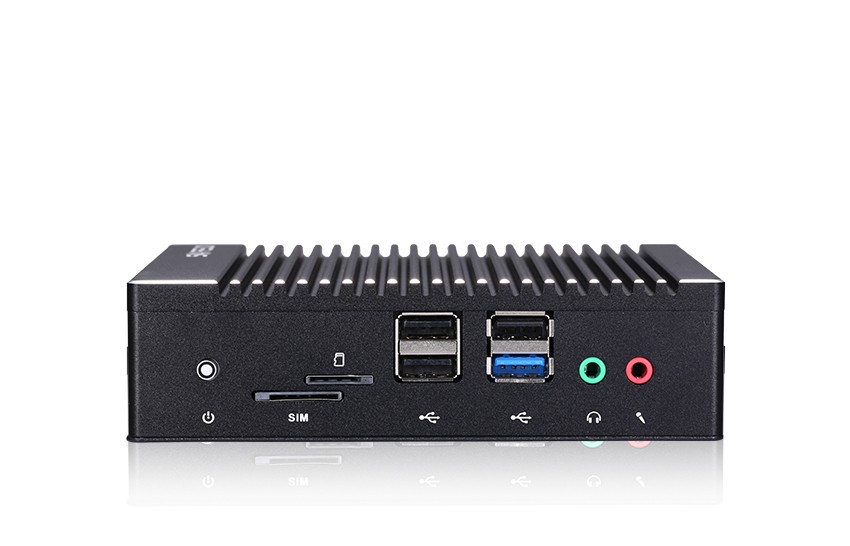

1*SIM slot，1*TF slot，3*USB 2.0, 1*USB 3.0, MIC, SPK
-
Extendable
Module
WIFI+Bluetooth Module (M.2 PCIE) /4G Module
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.6KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options

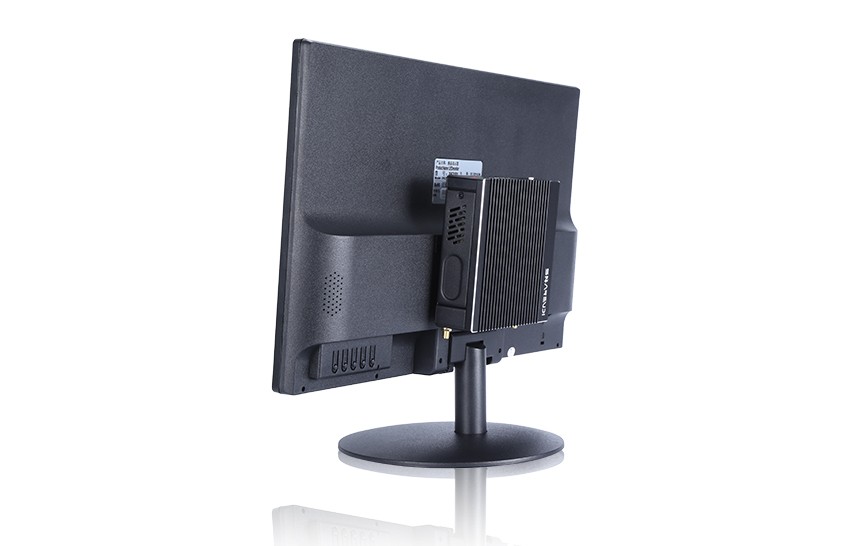

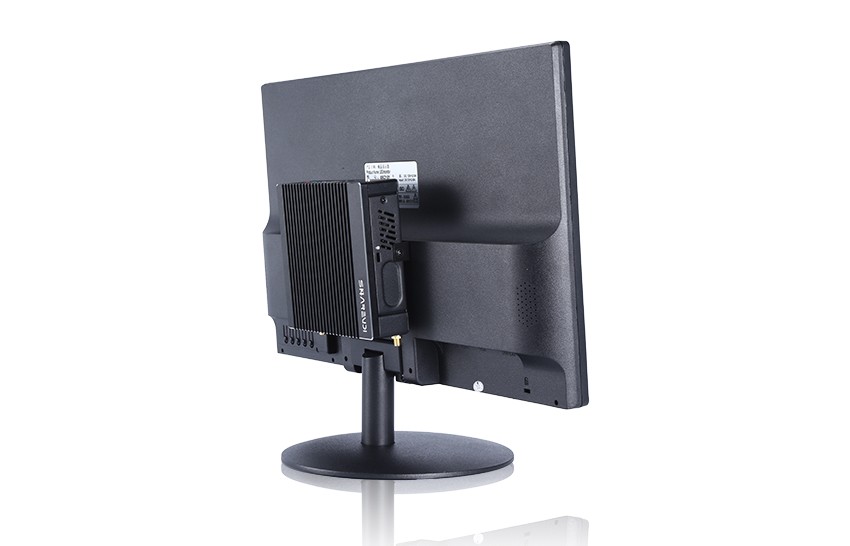

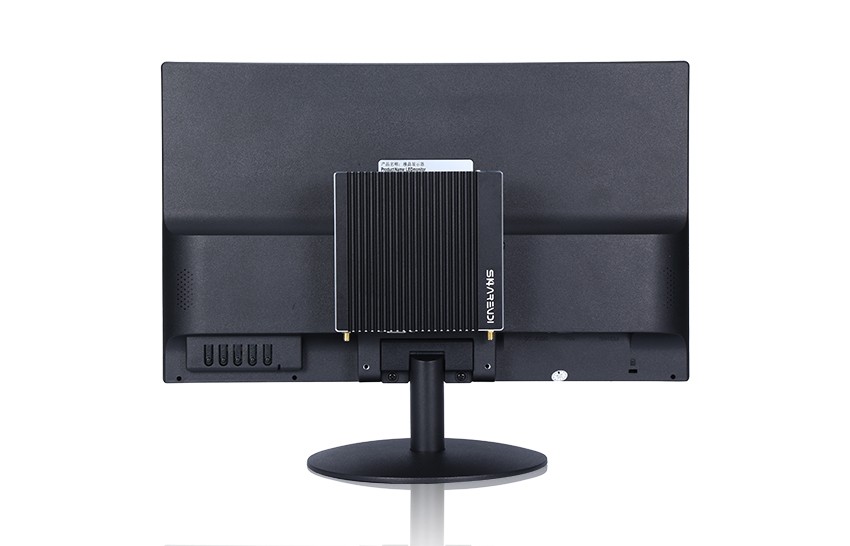

Dedicated bracket; Support VESA bracket
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K6-F13G-N2840
Intel Celeron N2840，2 Cores / 2 Threads
-
Frequency
K6-F13G-N2840
2.16GHz
-
Max Turbo Frequency
K6-F13G-N2840
2.16GHz
-
Cache
K6-F13G-N2840
1MB L2 Cache
-
Chipset
K6-F13G-N2840
Bay Trail
-
Technology
K6-F13G-N2840
1*DDR3L slot
-
Max. Capacity
K6-F13G-N2840
8GB
-
MSATA
K6-F13G-N2840
SSD 32GB/64GB/128GB/256GB/512GB
-
SATA
K6-F13G-N2840
Optional HDD
-
K6-F13G-N2840
Intel HD Graphics
-
K6-F13G-N2840
HD Audio realtek ALC 662
-
K6-F13G-N2840
10/100/1000Mbps Adaptive, RTL 8111F
-
Front
K6-F13G-N2840
1*HDMI, 1*VGA, 1*RJ45, 2*USB 2.0, 1*RJ45 COM, DC12V,
-
Rear
K6-F13G-N2840
1*SIM slot，1*TF slot，3*USB 2.0, 1*USB 3.0, MIC, SPK
-
Module
K6-F13G-N2840
WIFI+Bluetooth Module (M.2 PCIE) /4G Module
-
Input
K6-F13G-N2840
AC100-240V. 50-60Hz DC
-
Output
K6-F13G-N2840
12V-3A
-
K6-F13G-N2840
Windows/Linux
-
Dimension
K6-F13G-N2840
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight(Net)
K6-F13G-N2840
0.6KG
-
Color
K6-F13G-N2840
Black
-
Cooling Method
K6-F13G-N2840
Fanless Passive Cooling
-
Mounting Options
K6-F13G-N2840
Dedicated bracket; Support VESA bracket
-
Certification
K6-F13G-N2840
CE,FCC,ROHS,ISO
-
Operating Temperature
K6-F13G-N2840
-10~60 ℃
-
Storage Temperature
K6-F13G-N2840
-10~60 ℃
-
Operation Humidity
K6-F13G-N2840
0~95% (No Condensation)
-
Storage Humidity
K6-F13G-N2840
0~95% (No Condensation)
