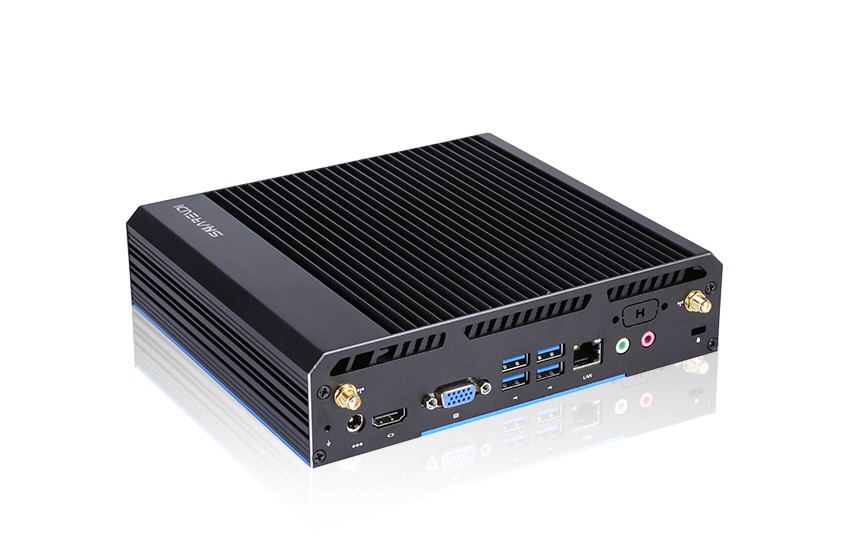

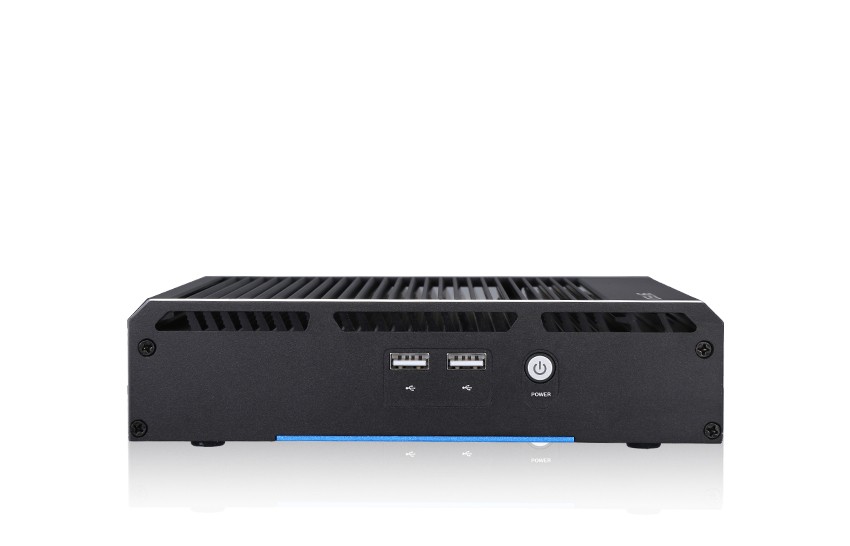

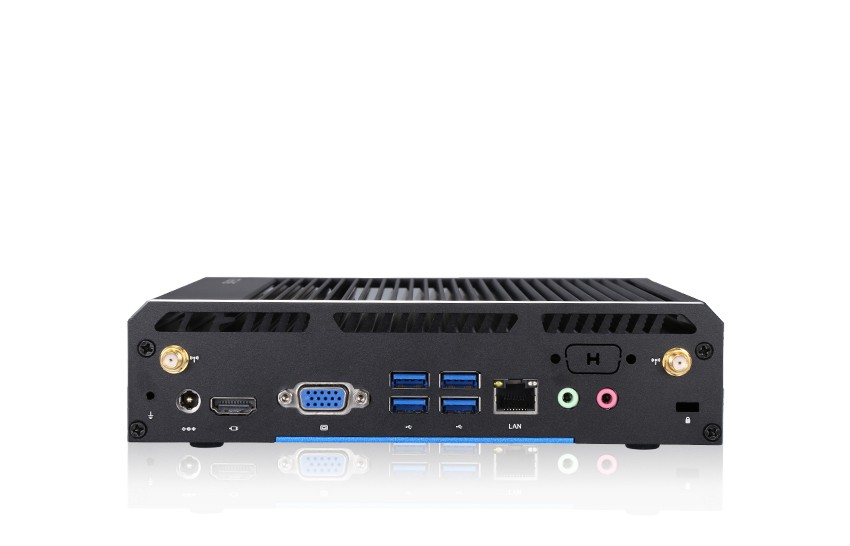

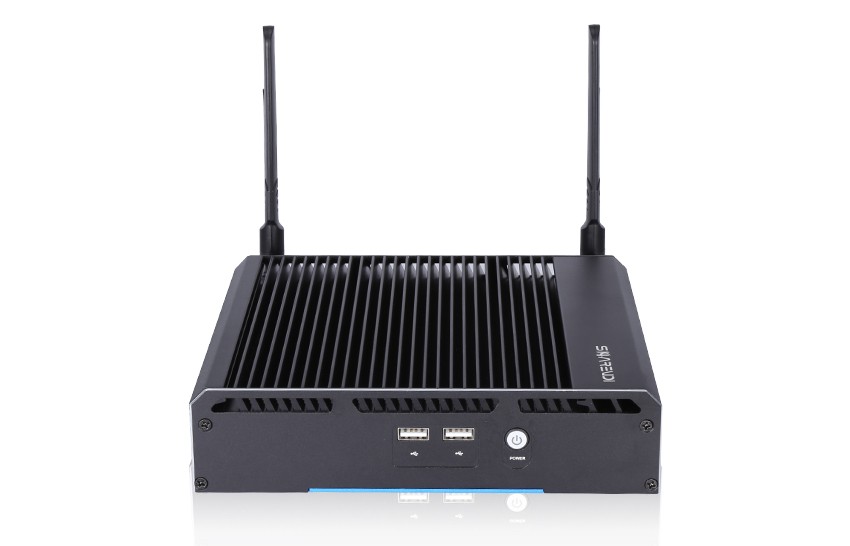

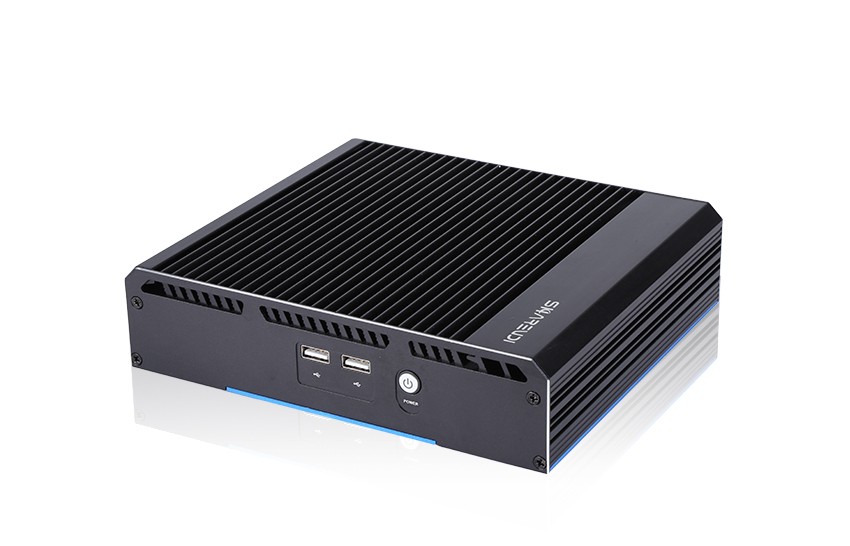

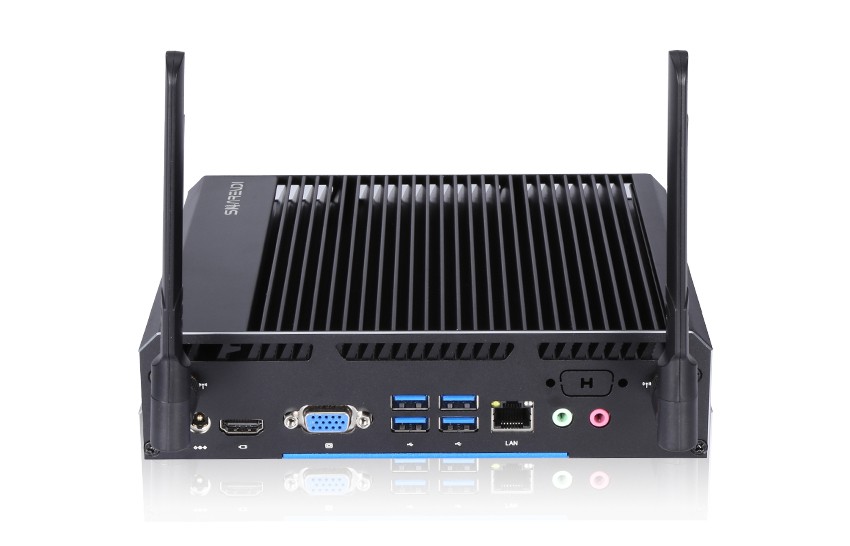

K7-F17 Industrial Embedded PC
Model: K7-F17-8565U
● Industrial Fanless System with compact rugged design
● Optional processor Intel core i3 / i5 / i7
● -20 ~ 65 °C working temperature
● Extendable COM RS232/RS485
● Support 3G / 4G LTE Module
● 8xUSB, 1xEthernet, 1xHDMI, 1xVGA
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● support RPL / PXE diskless boot, wake on lan, WDT
Data Sheet 1
Send InquiryWith rugged and compact construture, Industrial embedded PC K7-F17 is designed for 24 / 7 use in extreme conditions for ues. The high compability makes it can be configured with wide range process, RAM, SSD and extendable I/O ports.
-
Part No.K7-F17-8565U
-
-
Processor
CPU
Intel Core i7-8565U, 4 Cores / 8 Threads
Frequency
1.8 GHz
Max Turbo Frequency
4.6 GHz
Cache
8 MB Intel Smart Cache
Chipset
Whiskey Lake
-
Memory
Technology
2*DDR4 slots
Max. Capacity
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Intel UHD Graphics 620
-
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111H
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front
HDMI, VGA, 2*USB3.0, 2*USB2.0, RJ45, MIC, SPK, RS232(Optional), DC 12V Input
Rear
2*USB2.0, Power ON/OFF
-
Extendable
I/O
1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-5A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 187mm*W 187mm*H 33.5mm
Weight(Net)
1.6KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K7-F17-8565U
Intel Core i7-8565U, 4 Cores / 8 Threads
-
Frequency
K7-F17-8565U
1.8 GHz
-
Max Turbo Frequency
K7-F17-8565U
4.6 GHz
-
Cache
K7-F17-8565U
8 MB Intel Smart Cache
-
Chipset
K7-F17-8565U
Whiskey Lake
-
Technology
K7-F17-8565U
2*DDR4 slots
-
Max. Capacity
K7-F17-8565U
32GB
-
M.2 SATA
K7-F17-8565U
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K7-F17-8565U
HDD 500GB/1TB/2TB (Optional)
-
K7-F17-8565U
Intel UHD Graphics 620
-
K7-F17-8565U
HD Audio realtek ALC 662
-
LAN
K7-F17-8565U
10/100/1000Mbps Adaptive, RTL 8111H
-
Wireless
K7-F17-8565U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K7-F17-8565U
HDMI, VGA, 2*USB3.0, 2*USB2.0, RJ45, MIC, SPK, RS232(Optional), DC 12V Input
-
Rear
K7-F17-8565U
2*USB2.0, Power ON/OFF
-
I/O
K7-F17-8565U
1*F_AUIO、1*LVDS、2*F_USB3、1*LPTI、1*COM_CON1、1*COM2、1*F_PANEL
-
Module
K7-F17-8565U
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K7-F17-8565U
AC100-240V. 50-60Hz DC
-
Output
K7-F17-8565U
12V-5A
-
K7-F17-8565U
Windows/Linux
-
Dimension
K7-F17-8565U
L 187mm*W 187mm*H 33.5mm
-
Weight(Net)
K7-F17-8565U
1.6KG
-
Color
K7-F17-8565U
Black
-
Cooling Method
K7-F17-8565U
Fanless Passive Cooling
-
Mounting Options
K7-F17-8565U
Dedicated bracket; Support VESA bracket
-
Certification
K7-F17-8565U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K7-F17-8565U
-10~60 ℃
-
Storage Temperature
K7-F17-8565U
-10~60 ℃
-
Operation Humidity
K7-F17-8565U
0~95% (No Condensation)
-
Storage Humidity
K7-F17-8565U
0~95% (No Condensation)
